Electric Appliance Electronic Products Electrical Digital Parts Plastic Injection Molding Mold Mould

Mold Despcription

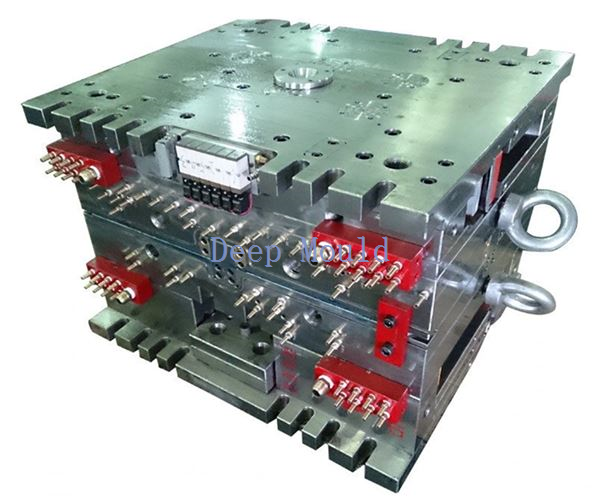

Plastic Mold Type：Water filter Plastic Mold

Part Size：dia100*250mm

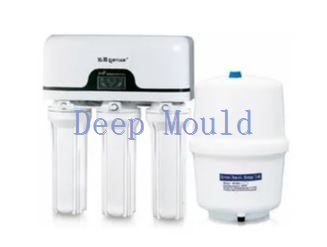

Part Description/Name：Water filter

Mold Cavity：1cavity

Mold Size：750*600*800mm

Suitable Machine：Haitian 600T

Mold Main Material：1.2344 HRC 48-52

Mold Injection System：1 tips hot runner

Mold Ejection System：Stripper eject system

Mold Cycle Time：45 Seconds

Mold Life：1mio

Lead Time：50 working days

For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mold Steel Checking(Hardness, flaw detection)
- Mold Standard Spare Parts Checking(hardness, size, flaw checking)

2. Mold Making Process Q/C
- design checking (part design, mold design, mold engineering drawing)
- checking each part of mould's size after machining, according to 2D drawing
- Plastic mold testing(check mold the running condition)

Our Advantage:

1.The good OEM service and R&D services,we can design for you in two days ;
2.Advanced production technoIogy and equipment;
3.We strictly implement ISO management system standards for plant operation.
4.A full range of technical support services;
5.Good After-sale service.
a). 12 months warranty
b). Guarantee mold life as per SPI standard or customer specified.

FAQ
1.Q:My components have already been developed on CAD. Can you use the drawings?
A: Yes! DWG, DXF, IGES, Solid works and STP, X_T files or samples can all be used to generate quotes.

2.Q: Can I test my idea before committing to mould tool manufacture?
A:Yes, We can provide UG 3D design solution, AutoCAD mold design and product development.
