Prototype Plastic Injection Molding: Design And Tooling Considerations

When developing a custom plastic part, engineers need to consider more than its shape. Material properties, dimensional tolerances, assembly fit, and mold design all affect the final part's performance. These factors also influence tooling costs, sample evaluation, and production planning.



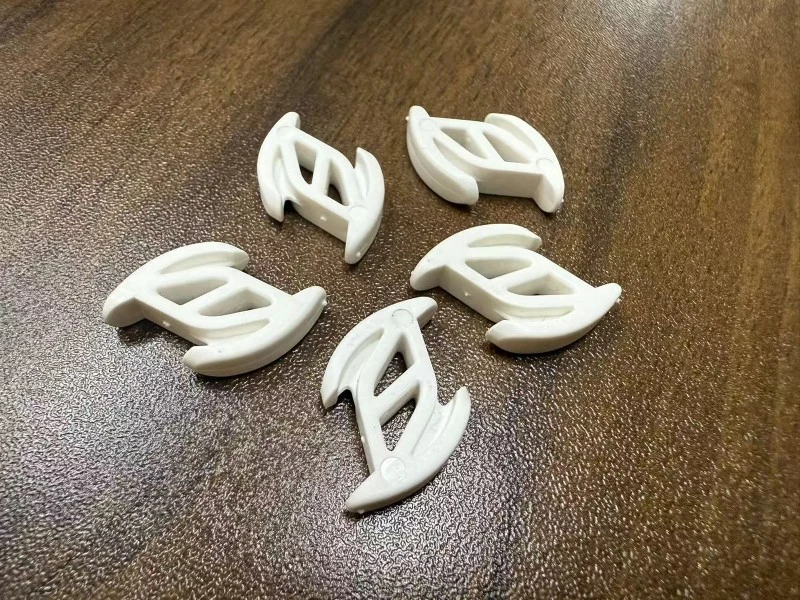

Prototype plastic injection molding allows engineers to evaluate a part's design and test molded samples before moving to larger production runs. The most suitable approach depends on the development stage, sample quantity, material requirements, and expected production volume.



Selecting a Prototyping Method for Plastic Parts

Not every plastic component requires an injection mold during the early development stage. For example, 3D printing can help engineers check geometry, mounting positions, and basic assembly relationships. CNC machining may suit prototypes that require specific materials or tighter control over selected dimensions. However, these methods do not always reproduce the characteristics of an injection molded part. Differences in material structure, surface finish, and manufacturing processes can affect test results.



In such cases, prototype plastic injection molding allows engineers to assess samples produced through the intended molding process. This approach becomes particularly useful when a part has clips, ribs, thin walls, snap-fit features, or complex assembly interfaces. Before selecting a method, the engineering team should define what the prototype needs to prove. If the goal is simply to check overall dimensions, a machined or printed sample may be sufficient. If the team needs to evaluate molded-part performance or prepare for production tooling, injection molding may offer more relevant results.



Reviewing Part Design Before Tooling

Part geometry affects both mold complexity and molding stability. Therefore, a design review should take place before the manufacturer starts building the mold. Wall thickness is one important consideration. Significant thickness variations can lead to uneven cooling, differential shrinkage, sink marks, or warpage. Meanwhile, insufficient draft angles may increase ejection resistance and cause surface damage.



Gate location also matters because it influences material flow, weld-line positions, and the appearance of visible surfaces. In addition, ribs, bosses, undercuts, and side-action features may affect tooling structure and manufacturing cost.



For custom prototype plastic injection molding, engineers should identify critical dimensions, cosmetic surfaces, assembly features, and areas that require special attention. These details help the manufacturer evaluate the mold design against the functional requirements of the part. Early design adjustments can also reduce the likelihood of modifying the mold after sampling. Nevertheless, some issues only become apparent after the first molded samples are available, so the project should allow for inspection and, where necessary, design revisions.





Material Selection and Dimensional Requirements

Material selection should reflect the part's working environment rather than price alone. Different engineering plastics offer different combinations of stiffness, impact resistance, heat resistance, chemical resistance, and dimensional stability. For example, a plastic housing used in a household appliance may have different requirements from a structural component exposed to repeated mechanical loads. Therefore, engineers should specify the expected operating temperature, load conditions, chemical exposure, and relevant durability requirements before confirming the resin.



Tolerances require similar attention. Not every dimension needs the same level of precision, and applying unnecessarily tight tolerances may increase tooling, inspection, and production costs. For precision prototype plastic injection molding, buyers should identify critical-to-function dimensions and explain how the part connects with adjoining components. Where applicable, the technical package should also include surface finish requirements, datum references, and inspection methods.



In addition, the selected material and part geometry can affect molding shrinkage. Engineers should consider these factors when defining dimensions and evaluating initial samples rather than relying on nominal CAD measurements alone.



Tooling Costs and Prototype Quantities

The cost of prototype injection molding depends on more than the number of samples. Mold complexity, cavity arrangement, material choice, side actions, surface requirements, and expected production volume can all influence the initial investment.



For a design that is still changing frequently, rapid prototype plastic injection molding may not be the most practical first step if each revision requires substantial tooling work. In that situation, 3D printing or CNC machining can help the team narrow down the design before committing to a mold. Once the design becomes more stable, low-volume prototype plastic injection molding can provide molded samples for functional testing, assembly checks, and customer evaluation. It can also help procurement teams assess the transition from development samples to repeat production.



When requesting a quotation, buyers should provide both the prototype quantity and estimated production demand. This information helps the manufacturer assess the tooling approach, expected setup requirements, and potential production route.



Prototype Inspection and Validation

A prototype inspection should follow the project's technical requirements. Depending on the application, the evaluation may include dimensional checks, assembly fit, surface appearance, mechanical performance, and material-specific testing. Engineers should distinguish between visual defects and functional issues. For example, a surface blemish may affect appearance, while excessive warpage could prevent proper assembly. Similarly, a part may meet its nominal dimensions but still fail to fit correctly with another component.



Sample approval should therefore reference agreed drawings, tolerances, and acceptance criteria. Recording inspection results also gives the engineering and procurement teams a clear basis for discussing corrections with the supplier.



Before approving the samples, confirm whether the tested material, tooling configuration, and manufacturing conditions reflect the requirements of the next production stage. This helps prevent teams from treating a successful prototype as automatic proof of production readiness.



Planning Your Prototype Plastic Injection Molding Project

Before requesting a quote, prepare your 2D drawings or 3D CAD files, material requirements, critical tolerances, surface finish specifications, and required sample quantity. An estimate of future production volume is also helpful. If the part needs to meet specific operating conditions or testing requirements, include these details in your inquiry.



Deep Mould reviews customer drawings, samples, and technical specifications to understand each custom plastic part project. With the key requirements clarified early, the team can discuss suitable prototyping methods, mold design considerations, and options for future production. Contact Deep Mould to discuss your prototype plastic injection molding requirements and find a suitable manufacturing approach for your project.
