Custom Brass Threaded Inserts For Plastic Parts

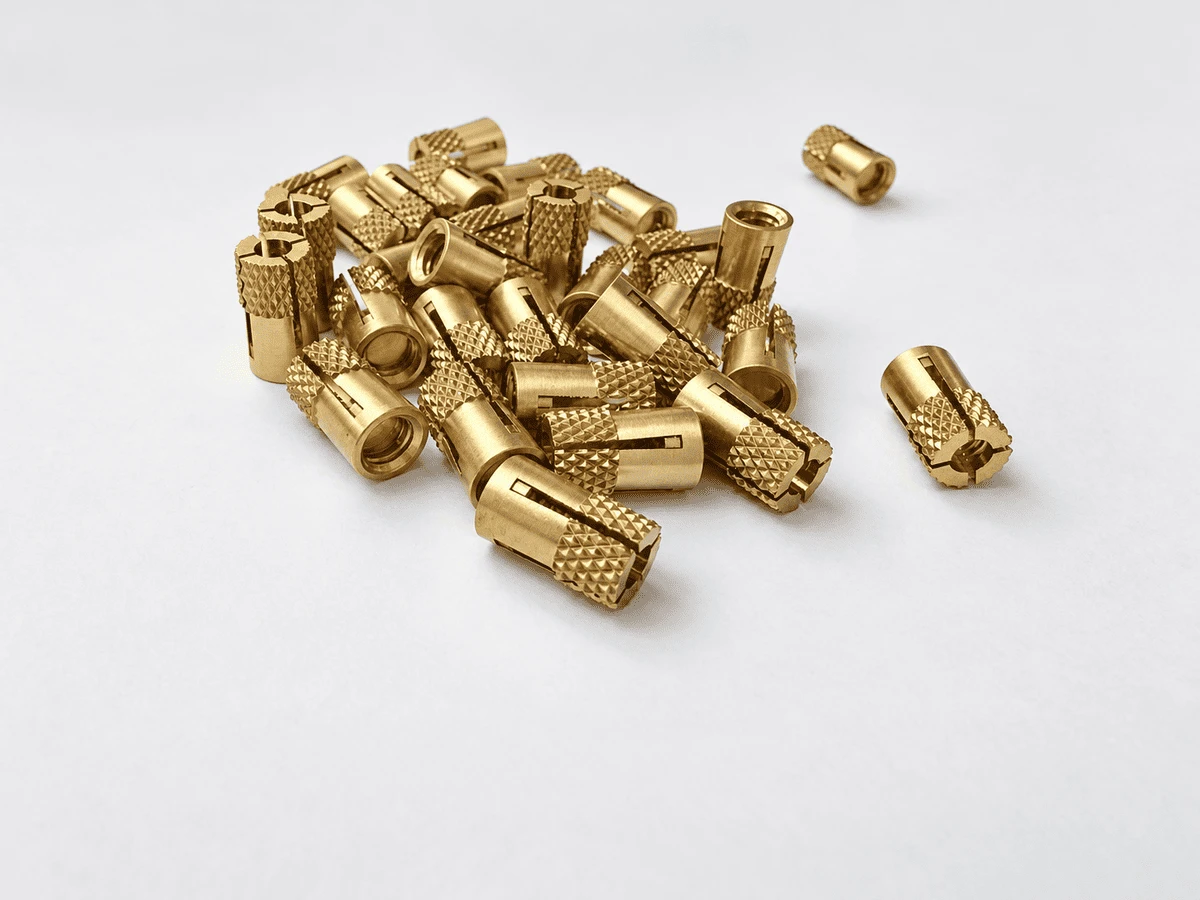

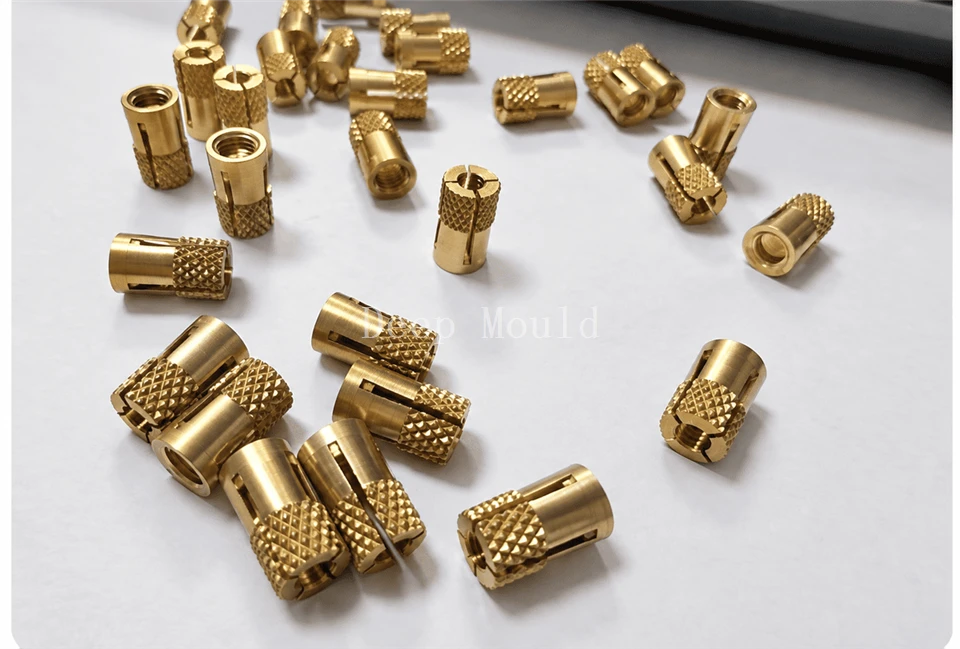

Deep Mould manufactures custom brass threaded inserts from customer drawings. The parts shown here have an internal thread, a knurled outer section and a longitudinal slot. Dimensions, thread specification and installation method are set by the customer's part design, not by a fixed catalogue size.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Description
Custom Brass Threaded Inserts For Plastic Parts
Deep Mould is not only making the mold toolings,but also provide custom brass threaded inserts for plastic parts.
• For this type of insert, the thread needs to accept the specified fastener, while the outside profile must fit the designed plastic boss or assembly interface.
• Knurl geometry, slot width, end detail and burr control should be agreed on the drawing.
• The insert and surrounding plastic part should be evaluated together before production quantity is fixed.
Dimension and Structure Reference
The drawing and specifications with M4 x 0.7 thread, dimensions and tolerances are not verified specifications for the Deep Mould batch shown in this draft. All the sizes can be customized.
Manufacturing and Order Review
• Drawing Review
Please send a 2D drawing or 3D model with material grade, internal thread, outer diameter, length, knurl area, slot dimensions, tolerances and quantity.
If the insert will be used in a molded plastic boss, include the boss drawing and planned installation method so the interface can be reviewed as a system.
• Inspection
Inspection points are defined from the approved drawing.
Typical checks may include the internal thread, outside diameter, overall length, slot dimensions and visible burr condition.
Functional retention or pull-out testing in the final plastic assembly must be specified separately by the customer.
• Request a Quote
Send your drawing, plastic-part interface and quantity for a machining review and quotation.
| Item | Details |
|---|---|
| Part Designation | 2D & 3D can be acceptable for quote |
| Material | Brass,Steel,Zinc,Aluminum and so on |
| Thread and Size | Please provide the actual thread, outer diameter, length and tolerances. |
| Process and Quantity | CNC turning process, sample MOQ and production-batch options. |
| Samples | Available for samples |
Request a Quote
Have a drawing or sample for a custom brass threaded insert?
Send us your 2D drawing, 3D model, sample, required material, and quantity. DeepMould will review your requirements and provide a suitable machining solution and quotation.
