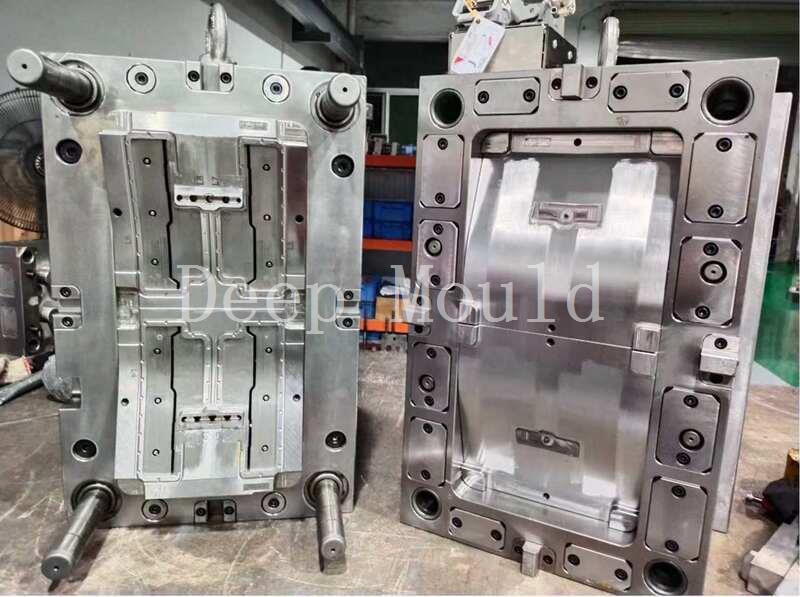

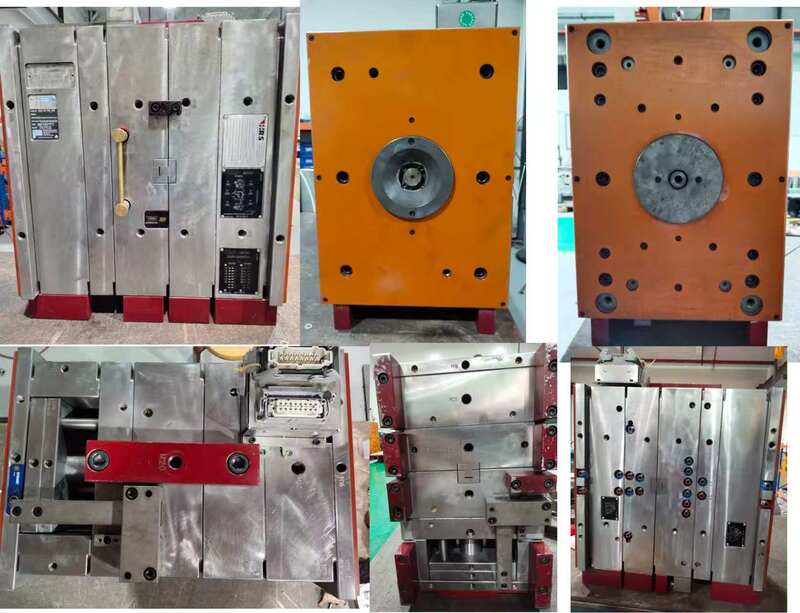

Automotive Interior Injection Mold

  •  Deep Mould manufactures custom automotive interior injection molds based on customer drawings, 3D CAD files or samples. Each mold is designed for the specific structure and requirements of the plastic component.

  •  Before tooling begins, the part design, material, dimensional tolerances and expected production volume are reviewed to determine the appropriate mold structure and manufacturing plan.

  •  Depending on the project scope, services can include mold design, tooling manufacture, trial molding, sample inspection and support for production.

Customization Options

Each automotive injection mold is designed for the specific plastic part and its production requirements. Several factors are considered during the design and quotation stages:

• Part Geometry: The mold design takes into account the part's shape, wall thickness, openings, ribs and undercuts.

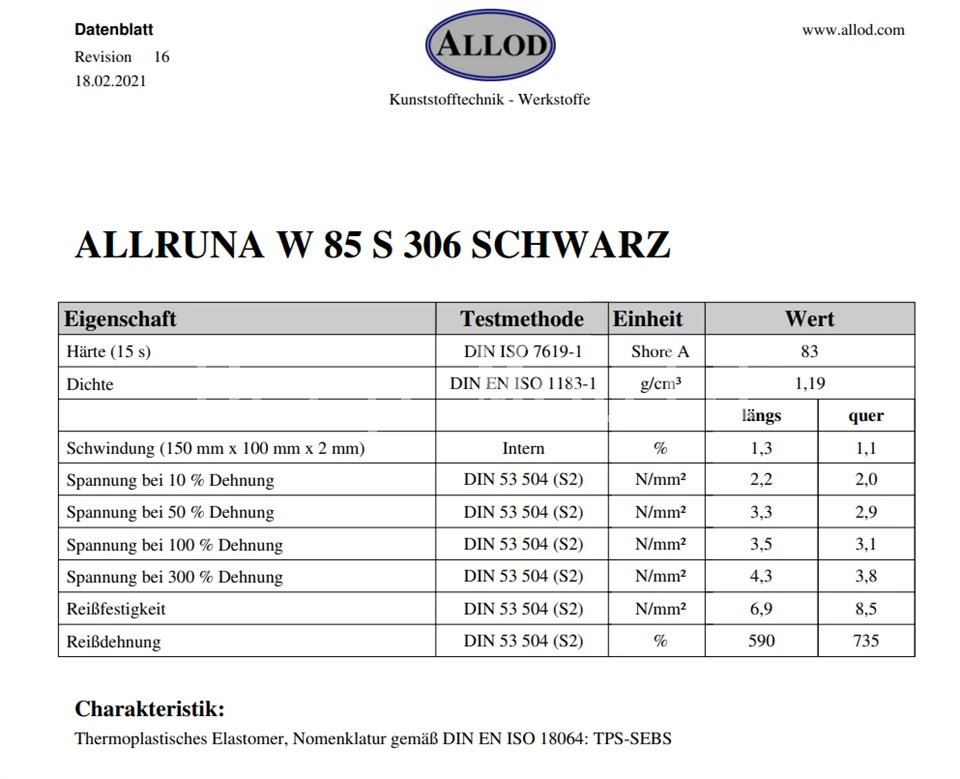

• Plastic Material: Material properties are considered when planning the mold structure and molding conditions.

• Cavity Layout: The number of cavities is determined by the required production volume, part design and tooling cost.

• Surface Finish: Texture, gloss and other surface details are defined based on the finished part's appearance requirements.

• Dimensional Tolerances: Critical dimensions and assembly features are identified for inspection according to the approved drawings.

• Production Volume: Expected order quantities and required mold life are considered when selecting the tooling configuration.

These details are reviewed with the customer before tooling begins to confirm the mold design, production plan and quotation.
