Plastic Injection Mold for Wire Stripper Tool Housing

Basic Part Information

Part name: Stripper Tools

Plastic material: PA+GF

Surface Finish: VDI 3400

Color: Yellow

Core & Cavity Steel:1.2344 HRC 48-52

Basic Mold Information

Gate type: Sub Gate

Cavity number: 1+1

Shrinkage: 5/1000

Molding Machine (Tons):Haitian 120T

Mold type: 2-Plate

Mold Cost: Email Us

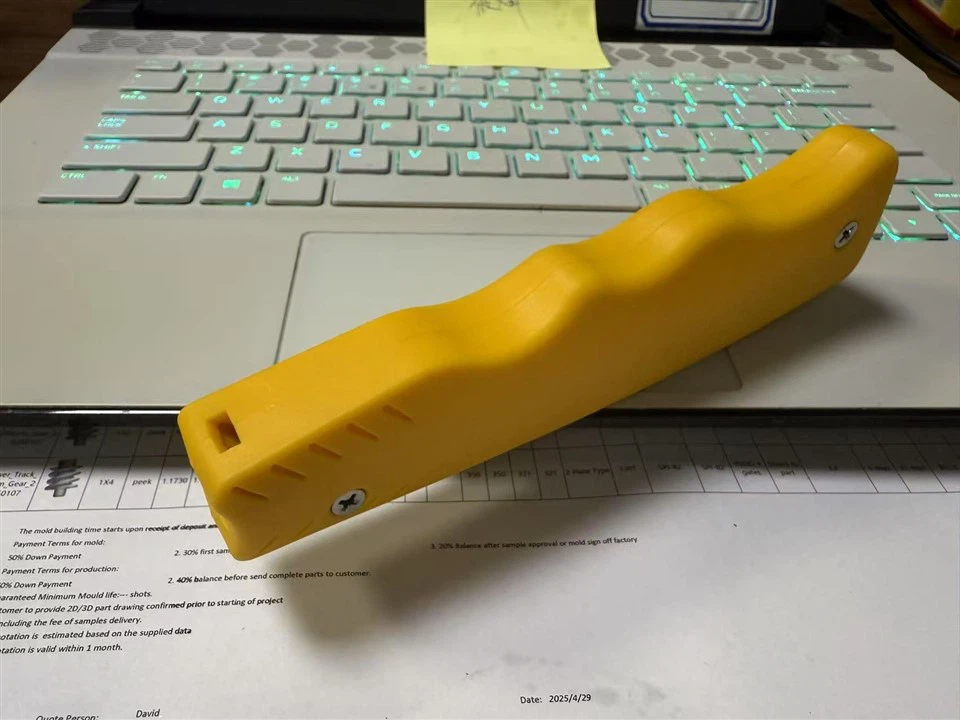

This project is a plastic injection mold for a wire stripper tool housing. The part uses PA+GF material and requires a VDI 3400 surface. Because the product is a handheld tool, the mold review should focus on grip shape, screw positions, shrinkage, surface texture and assembly fit.

Mold Design Notes: For this type of handheld plastic tool part, the grip area and assembly holes need careful review. The PA+GF material has different shrinkage behavior from standard plastic materials, so gate position, wall thickness and screw boss areas should be checked before mold manufacturing. Surface and Assembly Notes: The VDI 3400 surface helps improve the grip feel and appearance consistency. Visible surfaces, parting line position and ejector marks should be confirmed before tooling starts.

What Buyers Should Provide:

• 3D file or 2D drawing
• Target plastic material
• Surface requirement
• Assembly parts or screws
• Expected production quantity
• Sample or reference part if available

Addition information for your consideration:

Deep Mould's Injection Molds: Do Care of Every Mold in Details

At Deep Mould, mold tooling means gathering all the essential "gear" for your project-from jigs and gauges to auxiliary equipment. These are the backbone of successful part production. We firmly believe that choosing the right tooling doesn't just boost efficiency; it directly lifts part quality too.

While high-quality molds require a bit more upfront investment, they're incredibly durable, churning out consistent, top-notch parts for the long haul. The more parts you produce, the lower the cost per unit gets-so it actually saves you money in the long run.

Customization is our strong suit. No matter what unique needs you have, our design team will work with you hand-in-hand, leveraging our production expertise to create molds that fit your project perfectly.

For materials, we mainly use steel and aluminum. For high-volume production, steel molds are our go-to-they handle high temperatures and pressure, cranking out hundreds of thousands to millions of parts. They resist rust, are easy to maintain, have a smooth finish, and even allow simple weld modifications later. We use precise EDM machining for steel molds, nailing complex shapes and tiny tolerances effortlessly. Aluminum molds work too, but they typically only make a few thousand parts, are hard to repair, and need frequent replacement-so steel molds are more cost-effective over time.

Deep Mould's Advanced Equipment: Precision You Can Trust​!

Our production relies on top-tier equipment to craft perfect molds from your designs. Our state-of-the-art CNC machining centers work with tiny precision, shaping components to match your strictest specs. For tricky details like complex curves or thin walls that regular tools can't handle, our high-precision EDM machines step in to ensure flawless results. We also use advanced 3D scanners to check every part, leaving no room for mistakes. It's not just about having great machines-this gear helps our team build molds that last, perform reliably through endless production runs, and make sure you get consistent, high-quality parts every time.

Email us for equipments list for your reference.

Deep Mould's Quality Control and Certificates

We take product quality seriously. We pick trusted suppliers and check every raw material batch thoroughly to meet top industry and our own standards. On the production line, advanced tools and real-time checks keep every step on track-from shaping to putting things together-so you get consistent, reliable products.​

Molds matter too, and we give them the same care. Our seasoned engineers design them to fit each product perfectly, using precise equipment to make sure they're just right. Every mold gets tested, checked, and tweaked before use. We also keep up with regular maintenance to catch issues early, so they last longer and keep making great products, day in and day out.

Email us for our ISO 9001 certificates for your reference.

One-stop Plastic Parts and hardware manufacturer in China

We offer a wide range of manufacturing solutions including injection molding,CNC machining, 3D printing, sheet metal fabrication, rapid prototyping, die casting and thermoforming parts.

Send Your Design & Get a quick Quote Now!
Format available with: STEP | STP | SLDPRT|DWG | PDF|IGES|X_T |STL| DXF |CATPART files
All files are secure and confidential.

Our team will contact you within 24 hours.
